CUCM User Accounts

Several CUCM features require user accounts for authentication purposes. These features include an administrative web page, user web pages, and the following applications:

■ Cisco Unified Attendant Console

■ Cisco Unified Extension Mobility

■ Cisco Unified Manager Assistant (CUMA)

Cisco IP Phones can browse corporate and personal directories to find the directory number of a user. CUCM is provisioned with a user's first and last name to provide this directory-browsing functionality.

CUCM IP phone services can be configured to require a user login before providing access to the service. Users can authenticate with their username and password (alphanumeric) or PIN (numeric), depending on the needs of the application. CUCM sends authentication requests to an internal library called the Identity Management System (IMS) library, which is responsible for authenticating the user login credentials against the user database.

User Account Types

There are two types of user accounts in CUCM:

■ End users: End users are associated with an individual and have an interactive login. End users can have administrative roles based on the user group role configuration.

■ Application users: Application users are associated with applications such as Cisco Unified Attendant Console, Cisco Unified Contact Center Express (UCCX), or Cisco Unified Manager Assistant. The mentioned applications need to authenticate with CUCM, but application users do not have the ability to interactively log in. Application users are leveraged for internal process-level communications between applications.

Table 6-1 summarizes the differences between end users and application users.

Table 6-1 User Account Types in CUCM

End Users

Application Users

Associated with an individual

Associated with an application

Provide interactive logins

Provide noninteractive logins

User feature and system administration authorization

Application authorization

Included in phone directory

Not included in phone directory

Can be provisioned and authenticated using an external LDAPv3 directory server

Cannot use LDAPv3

The attributes associated with end users are separated into three categories, as follows:

The attributes associated with end users are separated into three categories, as follows:

■ Personal and organizational settings:

— User ID, first, middle, and last name —Manager user ID, department —Phone number, mail ID

■ CUCM administration settings:

—PIN, SIP digest credentials —User privileges (user groups and roles) —Associated PCs, controlled devices, and directory numbers —Application and feature parameters

User Privileges

CUCM allows for the assignment of user privileges to application users and end users. Privileges that can be assigned to users include the following:

■ Access to administration and user web pages

■ Access to specific administrative functions

■ Access to application interfaces such as Computer Telephony Integration (CTI) and Simple Object Access Protocol (SOAP)

User privileges are configured using two configuration entities:

■ User groups: A collection of application users and end users with similar privilege levels

■ Roles: Resources for an application

Each role refers to exactly one application, and each application has one or more resources. Access privileges are configured per application resource in the role configuration. Roles are assigned to user groups.

Figure 6-1 illustrates the access that four users have to two different applications. The needs of the four users are achieved through the assignment of two user groups.

User1 and User2 are assigned to Group1, which has two roles assigned to it for Application1. The privilege levels of Role1 and Role2 refer to the same application but provide different levels of access (privileges) to the resource. The overlapping configuration can be configured to give the highest or lowest overlapping privilege level.

User3 is assigned to both Groupl and Group2. Groupl and Group2 have role assignments of 1, 2, and 3. Rolel and Role2 both control different privilege levels to Applicationl and Application2. It is best to avoid overlapping role privileges (Rolel and Role2) when possible.

User4 is assigned to Group2, which has privilege levels to Applicationl and Application2, controlled through Role2 and Role3. User4 does not have overlapping privilege challenges.

Figure 6-1 User Privilege Component Interaction Users n : n Users Groups n : n Roles 1 : 1

Applications 1 : 1 Privileges













Read (None)

Resource3 -<-Read, Update

Resource1 -<-Read, Update

Resource2 -<-Read

Read Read (None)

Read, Update

The goal of the configuration illustrated in Figure 6-2 is to create administrative groups that have read, write, and update access to the Communications Manager configuration web pages (CCMAdmin), and junior-level administrators who have read-only privileges to the CCMAdmin configuration web pages. The following text relates to the example illustrated in Figure 6-2.

CUCM has various Administration web pages associated with functions, such as the Call Park web pages (used to the configure call park feature), the AAR Group web pages (used to configure automated alternate routing), the CallManager group web pages (for CUCM configuration), and the DRF Show Status page (used to check the status of Disaster Recovery System backup or restore jobs).

CUCM has many default roles, called standard roles. Some of the standard roles are associated with CUCM Administration applications (CCMAdmin). There are many predefined roles in CUCM by default, but we explore two in this example. Two standard roles for CUCM Administration exist: Standard CCMAdmin Administration and Standard CCMAdmin Read-Only. Standard CCMAdmin Administration has all privileges of the CCMAdmin application set to Update, whereas Standard CCMAdmin Read-Only has CCMAdmin privileges set to Read-Only Access. Standard roles can be copied, renamed, and reconfigured to achieve the needs of the organization deploying CUCM.

CUCM has many default user groups, called standard user groups. Two examples of standard user groups are Standard CCM Super Users and Standard CCM Read-Only. User group Standard CCM Super Users is associated with role Standard CCMAdmin Administration, and user group Standard CCM Read-Only is associated with role Standard CCMAdmin Read-Only. This is illustrated in Figure 6-2.

To assign an end user full access to all configuration pages of CUCM Administration, you have to assign the end user just to the Standard CCM Super Users group. End users who should have read-only access to all configuration pages of CUCM Administration just have to be assigned to the Standard CCMAdmin Read-Only user group. The appropriate application privileges are configured in the default roles, and the default roles are assigned to the corresponding user groups.

The final step required to achieve the objective of Figure 6-2 is to assign the users John and Jane to the Standard CCM Super Users group and to assign Kim and Tom to the Standard CCM Read-Only user group.

Figure 6-2 Roles and User Groups

User Group-

Standard CCM Super Users

Standard CCM ReadOnly

Standard CCMADMIN Administration

Standard CCMADMIN Read-Only

Application —

Cisco CallManager Administration

Cisco CallManager Administration

• CallManager Group Web Pages

• DRF Show Status Page

->- Privilege Update

NOTE CUCM has numerous default user groups that cover the needs of most requirements. Examples of default user groups include the following:

■ Standard CCMAdmin Read-Only

■ Standard CAR Admin Users

■ Standard CCM Server Maintenance

■ Standard CCM Server Monitoring

■ Standard CCM Phone Administration

■ Standard CCM End User

■ Standard CCM Gateway Administration

User Management

User management options in CUCM include the following:

■ CUCM Administration: Suitable for configuring a small number of users or doing single updates to the configuration of a user. CUCM administration of users is not scalable for large deployments of CUCM.

■ Bulk Administration tool (BAT): BAT is a tool that allows large insertions, updates, and deletions of users when LDAPv3 synchronization is not leveraged. Many learning institutions have frequent changes to the user database. BAT is an excellent tool for initial deployment or large updates to many configuration options, including the user database.

■ LDAPv3 integration: LDAPv3 integration allows end users to be synchronized from a centralized database to CUCM. This option proves useful when all the end users already exist in an LDAPv3 database. LDAPv3 user synchronization is available only to end users. LDAPv3 authentication is another LDAPv3 feature that can be leveraged. LDAPv3 authentication passes any authentication requests through the CUCM server to the LDAPv3 server where the user login is authenticated. LDAPv3 authentication has the benefit of maintaining one central password database. CUCM does not replicate the passwords that are configured in the central LDAPv3 database.

LDAPv3 synchronization replicates data to the CUCM database. User data cannot be modified from CUCM administration tools when LDAPv3 synchronization is enabled.

User data is modified on the LDAPv3 server by the LDAPv3 administrator, and resynchronization will occur at the next resynchronization interval. Depending on the resynchronization schedule, the resynchronization event might not occur for days or weeks. Manual synchronization can be performed at any time.

Passwords are not replicated to the CUCM database when LDAPv3 authentication is turned on. User passwords may exist in both CUCM and the LDAPv3 server if the user exists in both servers. It is recommended to combine LDAPv3 authentication with LDAPv3 synchronization to avoid inconsistencies in usernames and to eliminate the need for maintaining multiple usernames.

Table 6-2 summarizes the differences between the local CUCM database, LDAPv3 synchronization, and LDAPv3 authentication.

Table 6-2 End-User Data Location


LDAPv3 Authentication

User ID, First Name, Middle Name, Last Name, Manager User ID, Department, Phone Number, Mail ID

Local database

LDAPv3 (replicated to local database)

LDAPv3 (replicated to local database)


Local database

Local database


PIN, Digest Credentials, Groups, Roles, Associated PCs, Controlled Devices, Extension Mobility Profile, CAPF Presence Group, Mobility

Local database

Local database

Local database

Managing User Accounts

CUCM user management is performed from the Cisco Unified Communications Manager Administration User Management menu. The administrator must use an account with user management privileges. Any end-user account that has the user management privilege assigned can modify user accounts (including the CCMAdministrator).

The User Management menu includes options to configure application users, end users, roles, and user groups, as shown in Figure 6-3.

Figure 6-S User Management Menu

User Management ▼

Bulk Administration

Credential Policy Default

Credential Policy

Application User

End User


User Group

User/Phone Add

Application User CAPF Profile

End User CAPF Profile

SIP Realm

Figure 6-4 shows the Application User Configuration page. The most important settings are the user ID and the password. The user ID and password must match on the application server if the application user is configured for integration with another server. The application user could be associated with multiple devices (phones, CTI route points, and pilot points). Navigate to User Management > Application User from the CUCMAdministration to add an application user. Click the Add New button.

Figure 6-4 Application User Configuration

Figure 6-4 Application User Configuration

Cucm Application User Account

At the bottom of the Application User Configuration page, the application user can be added to user groups, as shown in Figure 6-5. The roles that are assigned to the user groups are listed in the Roles field under the Groups field.

Figure 6-5 Application User Group Configuration

Add Application User to User Groups

Figure 6-5 Application User Group Configuration

Add Application User to User Groups

View Roles of Application User

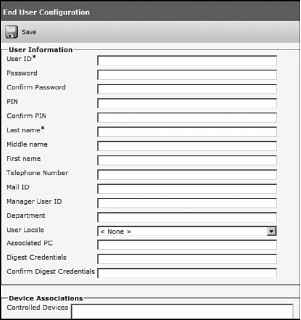

The End User Configuration page is similar to the Application User Configuration page. User ID, password, and group membership are the most important settings. Figure 6-6 displays the End User Configuration page in CUCM. Navigate to User Management > End User to add an end user in CUCM Administration. Click the Add New button.

Standard roles cannot be deleted or modified. Custom roles, however, can be created from scratch or by copying and then modifying a standard role. Figure 6-7 shows an abbreviated listing of CUCM roles. Navigate to User Management > Role to find an existing role configuration. Click the Find button to display all existing roles. Click Find.

Figure 6-6 End User Configuration

Figure 6-7 Default Role Configuration

F ñu! and Lfvt Rotes

MJto SeteclAI Jg c*r«

rawds hvni

Hule (l-Jlo(Jl)

fiûHt prr Fv»(

H" jd

Find Ko"* wtare|Name ■*!!begns «/;(■

find| Clear Fftc* I

| Sttect or inter ïç«rch (ext jrJ

I- Nim " »ípl«»e«H*i D*l4rtp*ün C«V

■ftmrtirrt ftXI flPf iVrmi

Oseo Call Manager AM. Database

*ccess the axl APts


g»anifjrtf Admin Bag T«< Admin

AifniiniUnr CAA


ffantfrtf CCM Mm won

AJI users wilh access to CCM site


SUntfard CCM tnd UiB'ï

access M CCM usar ÚptiWi Mages


Standard1 CCM feature MoMaecncnt

Cisco Call Manager Adm-.tistrafticii

Standard CCM Feature Hnnnc-rmrri


Standard OCM Gateway HiniMmtrí

¡ Cisco Call Manager Adrn nissra".i&n

ütardard CCM {¿a'.enay Management


aandarfl CCM Phceie Management

Ci tro Call Manager Adrr. nwrMinn

Standard CCM Phone Management


Standard £CM Houte Wan MirMMmtri Ci tío Call Mariner fcJmViiKraîiûil

Standard com Rolíc Plan Hanagemeiit


gurnard CCM StmCT Htuwflmitnt

Caco t>n Manege Adraujr^.ori

Stnndnrd CCM Ser«*: MnnagcmnrH


Sttmhrrf Svfiwn hiiwamwit

Cisco Call Manager Administration

Standard CCM System Mane&emer*


0*œ c*n Mil nag» AdtrwiiHraiiori

Standard CCM Uw Managemmi


Sundwd-.CCH WtrPnvilfiwHan««

irnsHt Cisco Call Manager Adirantarntioei

Standard CCM User Privilege Management


yi^'llrflrii CCPWÛflirf Admir*tr«Ú3n

Ci ICO Call Manager AdminiKr«iert

Administer all aspeOs of CCftHdmin tyiterti


SUodariJ CCMAPMJN .Read On*

Cisco Call Manager MmfliHrwiwi

Read access to all CCMAdm« resources

Standard CCMUSLR Administrator»

Cisco Call Manager Lnd user

Administer all aspects d CCHUSer system


C>*» Computer Trlrphiinr fnlrrf/iC»; [CTI]


rt 111« mam ng " *

Figure 6-8 displays the Role Configuration page. When configuring a new role, you have to select an application on the configuration web page. The application resources will be displayed and read, or update privilege can be assigned to each. The Role Configuration pages are accessible via User Management > Role in CUCM Administration.

Figure 6-8 Role Configuration Page

Selected Application

Figure 6-8 Role Configuration Page

Selected Application

Configured Privilege per Application Resource

Standard user groups cannot be deleted or modified. Custom user groups can be created from scratch or by copying an existing user group. Figure 6-9 displays an abbreviated list of the default user groups. Navigate to User Management > User Group and click the Find button to display existing user groups. Click Find. Click a user group.

Figure 6-9 Default User Groups


™ go»«.

r . - Rom cow




Slundiird CCIM Admin lAm


Slmidnrd frH Fod .>-..


swpdnrd CCM fatmtn. ASrtônifluiliM


Sftn&ri CCM.Ptaw táciirsíraticg



xandnrd tLM Kind In!*



K.iidñrd CCM ^rrvrr fnn r-'i-'ii -



fflflndurd : " S*rwir



.^rtndnrd rcM Sjwr Irtrra



sundnrd cn ftow ca" MDnrsnrw


OI --.t* íartcpuíiiBriM


snndird cri II» ai RííanJ.^n



fBMdlíd ai ëlftm Nl-i Ií- HúdKmtM



ttt.ind.ird ATai» r:™! nil «iP ft? Ptivin-i



artndnrd CTI H'v» Rfrrwion ni s=ny T^ Hntrrwl





'J'I -'C '. .'je..'Î .. - z.' ^'



M.ndurd 1 M ImlhnnhMllon hrflh!!



Si-iiidnrd Oflrkrt Snlirr Ifc*™




standard Tnhsww UKr



Figure 6-10 displays the User Group Configuration page in which users can be added to a user group. In this example, the Standard CCM Super Users Group was selected.

Figure 6-10 User Group Configuration

Figure 6-10 User Group Configuration

Figure 6-11 displays the end-user addition to a user group. Click the Add End Users to Group button of Figure 6-10 to display the user search page displayed in Figure 6-12. Enter a search string and click Find. Select the user by checking the box next to the user, and then click Add Selected.

Figure 6-11 User Group Configuration

Figure 6-11 User Group Configuration

Assign roles to a user group by selecting the Assign Role to User Group item from the Related Links list box in the upper right of the User Group Configuration page. A new window will display where you can assign or delete roles, as shown in Figure 6-12.

Figure 6-12 User Group Role Assignment

Figure 6-12 User Group Role Assignment

Click the Add Role to Group button. Select the roles that you would like to add, as shown in Figure 6-l3, and then click the Add Selected button.

Figure 6-13 User Group Role Assignment


inl List Roles

UdHew B£ ScMAI ^ Cteai Al ^ C«IHeSet


hod 1

«It where J Name becins w*h ^ll

giiftf FiHtJ I »1

| Select ite

m or enter search text Vf





Cisco Call Manager Adminisy-a-jcfi


Standard Ml tfiAma

Cisco Call Manaser AM. Database

Access the AXt Atts


Standard Adifln R,w Tm* Aifnun

Ailnnniilrr CAJt


Standard CCM ftdmin tfnn

All use's w*h access to CCM web site


Standard CCM tnd uifi

Arena !o CCH user Option Ksyei


Stafrdacd CCM fgatura Hantacnrcnt

Cisco Call Manager Administration

Standard CCH Feature Management


Standard CCH fiatrwav Managemert

Cisco Call Hanauer AdrninisSralien

Standard CCM Gateway ManaUeiTieiiL


Standard CCH Www Marawtnvam

Cira Call Manaoer AdmWrtrition

Standard CCM Hione Management


Standard CCH ttame Man Haftatiement

Cis« Call Manager Adminisr*i«i

Standard CCM Ftwte Plan Management


Stordard CCM Service Karonemcnt

Cisco Call Maruiorr Adminisiraiinn

Standard CCM Siiviee Wanaormrnt


Cis<e Call Manager AdminisSraticn

Standard CCM Üystem Management


StandardCCM,werMana Miner*

Cisco Call Manager Admini*r*mn

F.tanRjirrt CCM User Manaflffwnt


Standard CCH Privilege Maaaaameri

Cisco Call Martafrer AdminisSralion

Standard CCM user Privtefle Management


standard .cffWHW BMri.flp»*

OW) Call Mortfiff^r Adminiilr*1iCn Cisco Call Manager AdminiKrWiifio

Read access to all CCHAdrtfin resources


Standard CCTUSfctAjHiircaUalwn

CiKO Coll Mftrtoget frvj Uwr

Ailrniniilrr all ffllpech Ol CCMliicr System


Standard CT] Allow Call HöfWönrto

Cisco Computer "elepticne interface (CTI)

Allow mcni onnfl Of calls


Stardard CTI AJtow Call Parh Hpntwna

C>KO Compul« TfilupJiOni. tnt«rf*ai {CTI)

Allow mnnÄiMiny 0l Call park flNt


Standard CT1 Aflow_Call according

Cisco Computer Telephone Interface (CTt)

Albw recording of calls


Was this article helpful?

+5 -6
100 SEO Tips

100 SEO Tips

100 SEO Tips EVERY SEO Enthusiast Should Know. This Report 100 SEO Tips will help you to Utilize These Tips to Dominate The Search Engine Today.

Get My Free Ebook


  • clotilde buccho
    How to allow a user access to personal directory on cisco call manager?
    2 years ago
    How to create admin user in cicso call manager?
    2 years ago
  • silke
    How to create cucm admin account?
    2 years ago
  • bailey
    How to convert user to local user account cucm?
    1 year ago
  • gladys
    How to modify user accounts for cisco unified communications manager?
    1 year ago
  • Kimberly Mora
    How to setup readonly cucm account?
    12 months ago
  • conan williamson
    How can you convert your CUCM end account to an LDAP account from a local user?
    12 months ago
  • caiden
    How to delete add and modify users ic cucm?
    12 months ago
  • philip
    How to restrict local user access to cucm?
    11 months ago
  • michael
    How to create credential for personal directory in cucm?
    10 months ago
  • belladonna
    Where can i find digest user on CUCM?
    9 months ago
  • Grimalda Galbassi
    How many ways can I access my Cisco Call Manager?
    9 months ago
  • sanna-leen myllys
    How to login with ccm user page?
    8 months ago
  • ryan
    How to export list of application users in Cisco call manager?
    8 months ago
  • Primrose
    How to create a read only account on cucm 11.5?
    6 months ago
  • cynthia
    Can you associate cucm logins with windows?
    4 months ago
  • Mulu
    What does user manament do in cucm?
    3 months ago
  • Natsnet Nebay
    What is admistrative passoword cucm?
    3 months ago
  • Summer
    How to add an end user to ccmadmin?
    2 months ago
  • Veera
    How to give access only for ccm end userto creat new user only?
    2 months ago

Post a comment
